LR1280 with a custum fixed jib

Hansebubeforum » 1/50 » LR1280 with a custum fixed jib » Threadansicht

Autor Thread - Seiten: -1-

000 — Direktlink
12.02.2008, 20:01 Uhr
Jason

This a latest model that I have almost finished. hope you like it

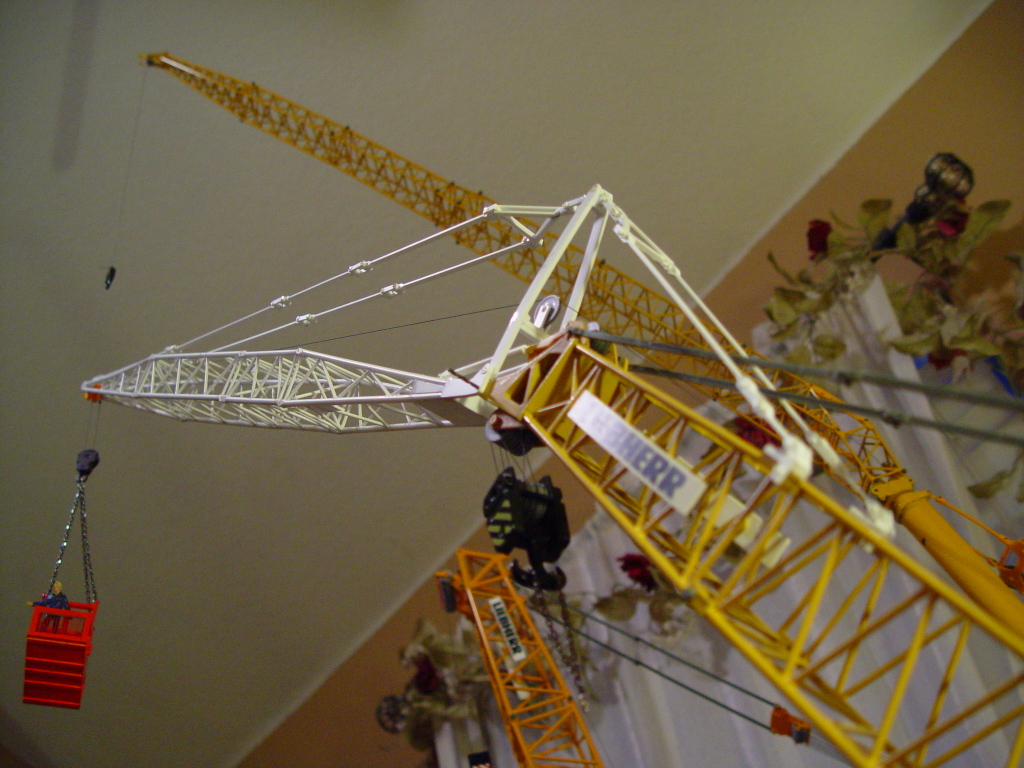

wind speed indicator

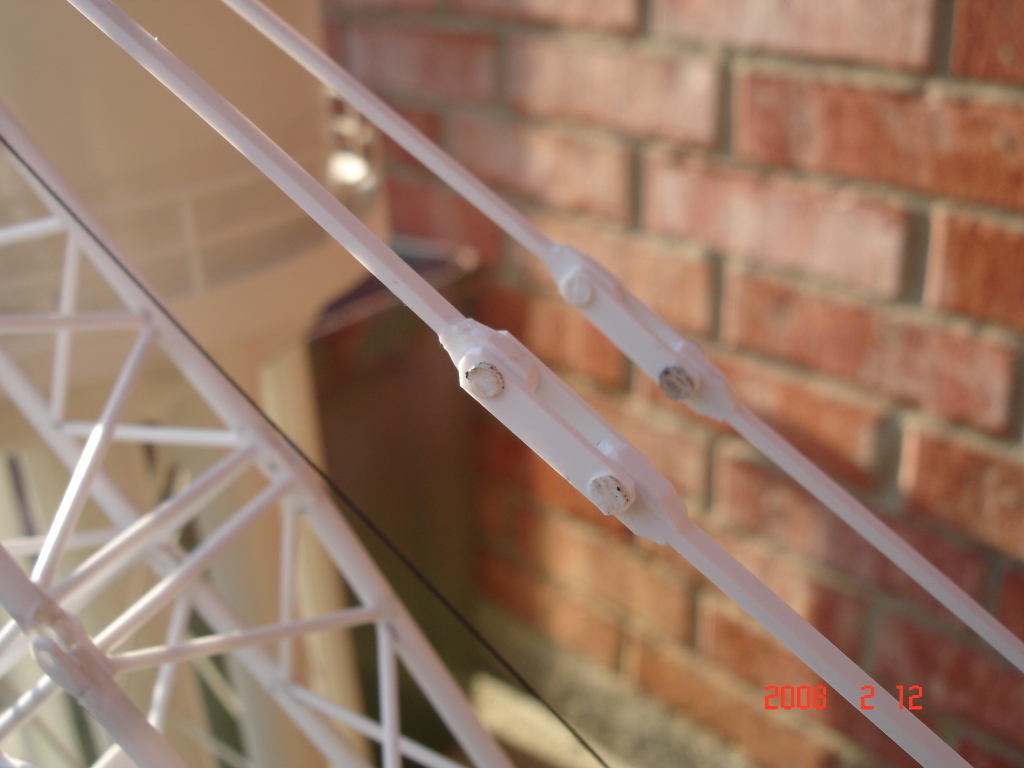

close up of a frame

more pics will come later when I get off work
Jason
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

001 — Direktlink
12.02.2008, 20:08 Uhr
Sebastian Suchanek
Admin

Wow, this sure looks great. And the wind speed indicator gives it a nice extra touch.
Don't tell me that indicator levels off by itself...

BTW & semi-offtopic: Has anyone built a Mid Fall for the LR1280 yet?

Bye,

Sebastian
--
Baumaschinen-Modelle.net - Schwerlast-Rhein-Main.de

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

002 — Direktlink
12.02.2008, 20:28 Uhr
Dave

Very nice. Are the pinned connections of the pendants functional? What did you use for the tiny pins? If possible could you show a detail of the jib pendants connecting to the main boom?
--
Greetings from Chicago

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

003 — Direktlink
12.02.2008, 21:24 Uhr
Jason

Yes the indicator levels its self out depending on the angle of the crane. What is a mid fall for the1280?
Yes the pedndant line connection do work but I plastic welded the so they would just be 1 solid piece. I was going to make it come apart but ran out of time and just welded them together. They do swivel amd move. I used small round plastic stock for the pins.
I have more of my models I do on my website http://www.jaynikl.piczo.com/?cr=1
I will get some pics of all of it tonight and probably post tomorrow
Jason
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

004 — Direktlink
12.02.2008, 22:33 Uhr
Sebastian Suchanek
Admin

Zitat:
Jason postete
What is a mid fall for the1280?

A mid fall is a very short boom section (only about 75cm long) containing a set pulleys(?). It's meant to be installed in the middle of the luffing jib in order to enable twin-hook operation. It's described in the datasheet on pages 5 and 7.

HTH,

Sebastian
--
Baumaschinen-Modelle.net - Schwerlast-Rhein-Main.de

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

005 — Direktlink
12.02.2008, 22:43 Uhr
Christian

Zitat:
Jason postete
I will get some pics of all of it tonight and probably post tomorrow

please do! great work buddy. and welcome among us here, btw!
--
Gruß aus dem Schwarzwald
Christian
-------------------------------

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

006 — Direktlink
12.02.2008, 22:49 Uhr
Jason

So does the mid fall fit between two jib sections?
I never notice it before looks like it could be built
Thanks Christian I have been on here for a while I just never posted before
Jason
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

007 — Direktlink
12.02.2008, 22:54 Uhr
Sebastian Suchanek
Admin

Zitat:
Jason postete
So does the mid fall fit between two jib sections?

Yes, it does.
As far as I remember, one forum member (Christian?) has a picture of a real mid fall.

Bye,

Sebastian
--
Baumaschinen-Modelle.net - Schwerlast-Rhein-Main.de

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

008 — Direktlink
13.02.2008, 04:54 Uhr
Jason

A few more shots

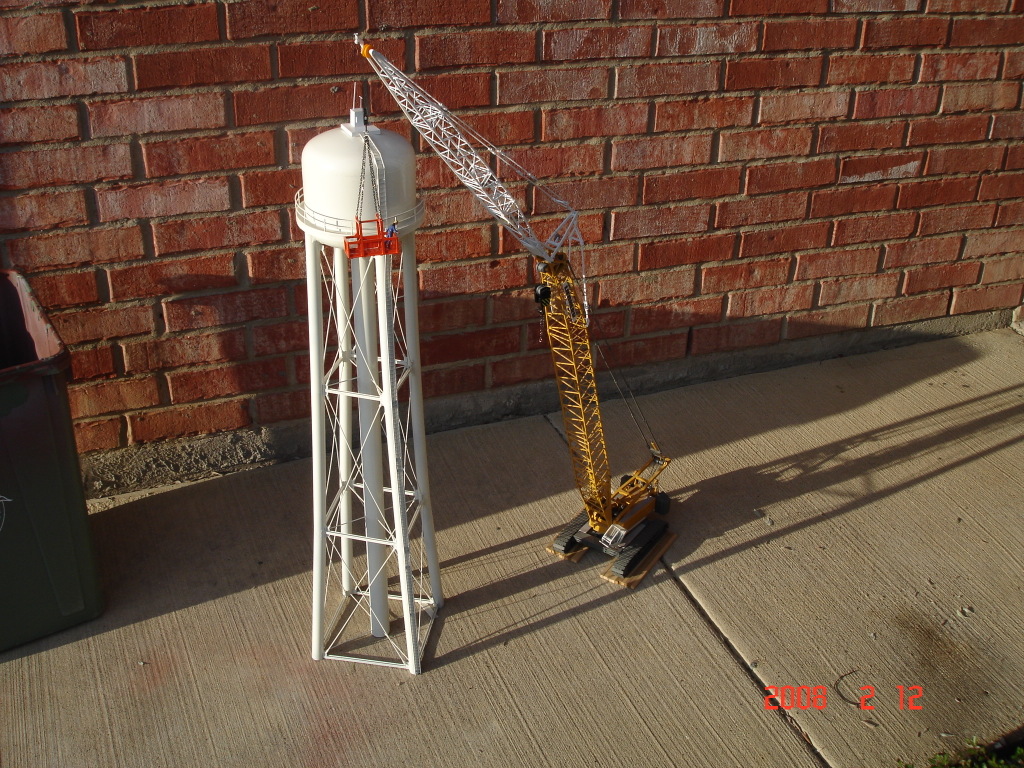

Crane servicing a water tower that I also built

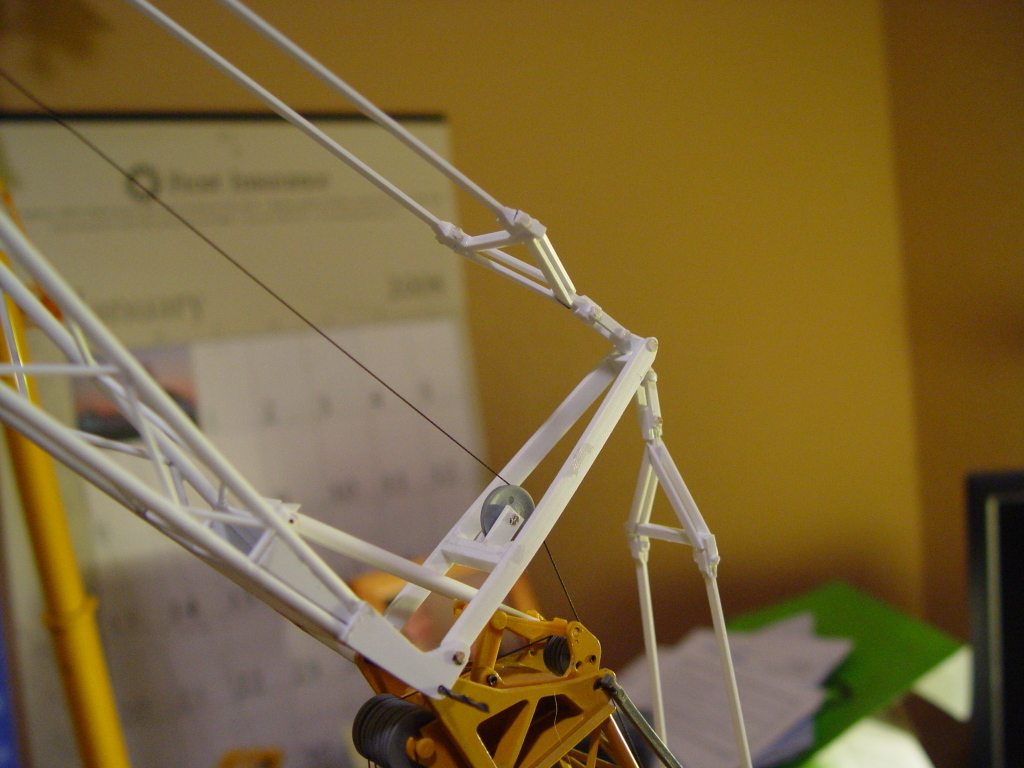

Close up of adapter from main boom to pendant lines, not finished

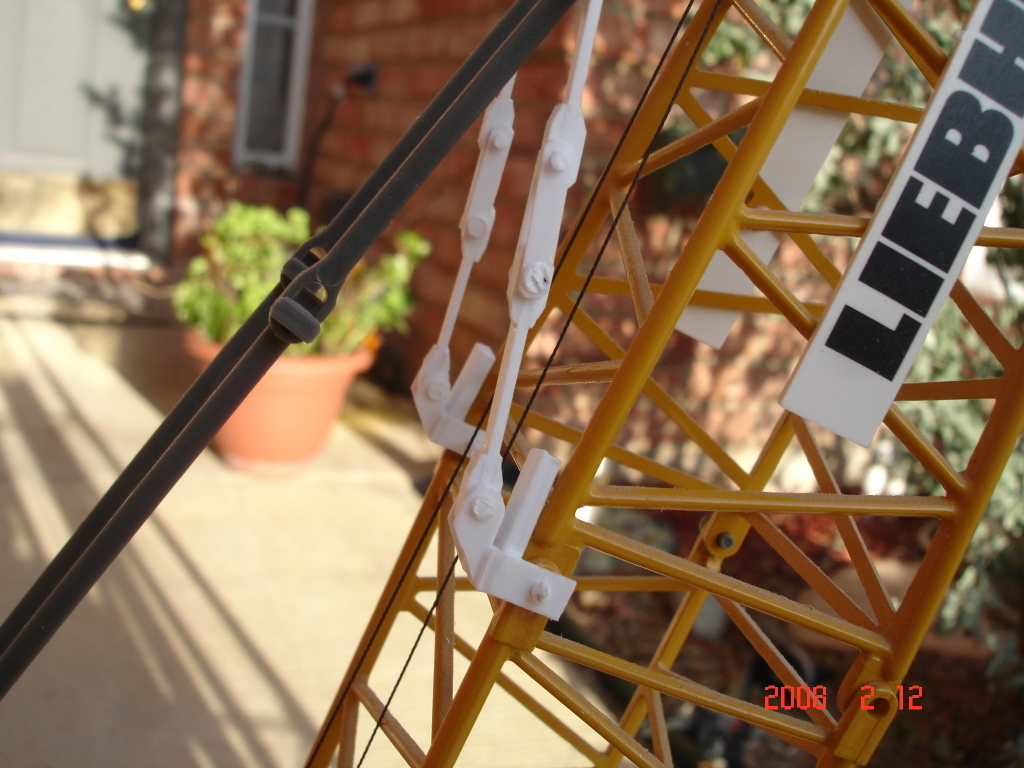

pendant line adapter close up All joints are free moving and swivel

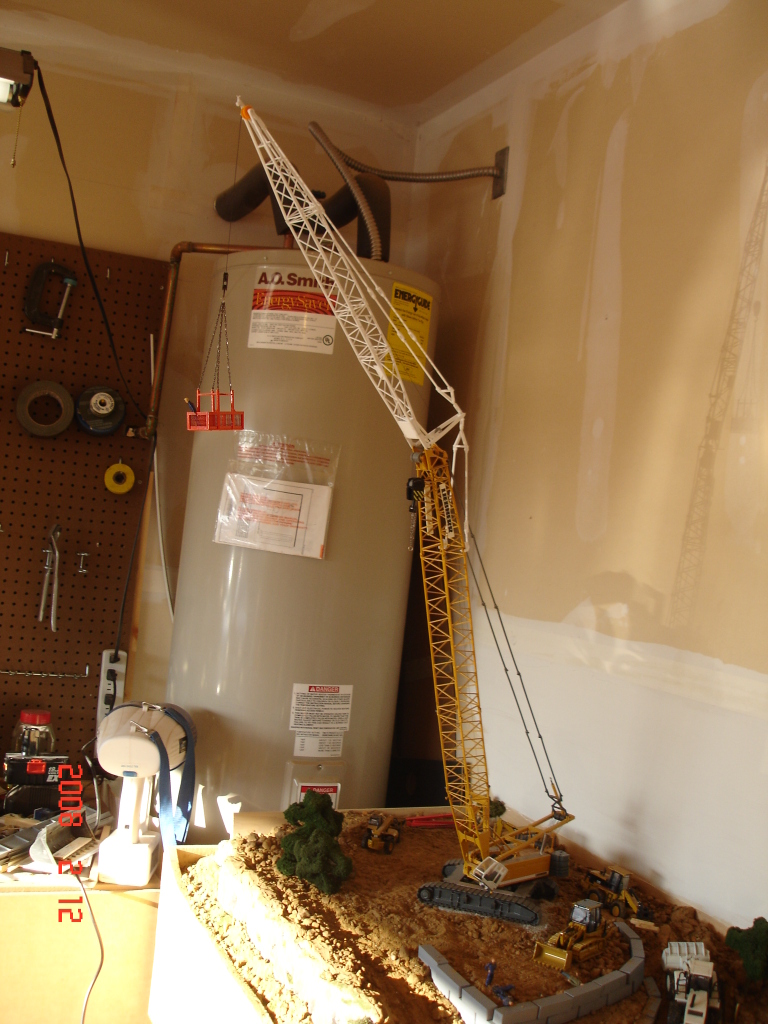

Quick shot of the crane in the dio

I had to take these quick Hopefully I can set it up and get some really good pics tomorrow
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

009 — Direktlink
13.02.2008, 17:24 Uhr
Dave

Thanks for the closeups. Nice work on the detail. I'm glad to see you on this forum. Much nicer here than the other place.
--
Greetings from Chicago

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

010 — Direktlink
13.02.2008, 17:34 Uhr
Christian

Zitat:
Sebastian Suchanek postete
As far as I remember, one forum member (Christian?) has a picture of a real mid fall.

yes, here they are. its of a LR1300 but afaik the piece is identical to the 1280 variant anyway.

Jason, just honk if you need more pics mate

https://www.hansebubeforum.de/showtopic.php?threadid=10128&highlight=midfall
--
Gruß aus dem Schwarzwald
Christian
-------------------------------

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

011 — Direktlink
13.02.2008, 18:44 Uhr
Jason

Christian thanks for the pics I think I will give it ago on the mid fall. I have a few days to burn before my parts come in for my next project.
dave I have been on here for a while I will post here more offten. I just need to learn German..lol
Where do you post pics of real machine on here like cranes?
Jason
--
http://www.jaynikl.piczo.com/?cr=1

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

012 — Direktlink
13.02.2008, 18:52 Uhr
Christian

Jason

pics of real machines get postet in the section called "Vorbild" when its of current nature. its the first forum part in the list. under it is the historic section. feel free to post in your native language, people post here in german, english, sometimes french, sometimes spanish (*sigh*, thats an Insider), we even had danish, italian and norvegian mixed in
let alone regional german dialects *grin*

please contact me or any staff member for assistance and good luck with the midfall. has never been built before in 1:50 afaik
--
Gruß aus dem Schwarzwald
Christian
-------------------------------

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

013 — Direktlink
13.02.2008, 19:48 Uhr
Jack.

Great Pictures Jason, Im pretty sure we wont se "Jack mehoff" On here!

Whats your next prodject, also hows the diorama?
--
Grüße aus Großbritannien

Jack

Heavy Cranes
Dieser Post wurde am 13.02.2008 um 19:51 Uhr von Jack. editiert.

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

014 — Direktlink
13.02.2008, 19:50 Uhr
Christian

Zitat:
Jack. postete
Great Pictures Jason, Im pretty sure we wont se "Jack mehoff" On here!

take my word for it. or only a very very brief appearance
--
Gruß aus dem Schwarzwald
Christian
-------------------------------

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

015 — Direktlink
13.02.2008, 19:50 Uhr
tobi94

Very good work!!

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

016 — Direktlink
13.02.2008, 19:52 Uhr
Jack.

Thank God Mate!
--
Grüße aus Großbritannien

Jack

Heavy Cranes

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

017 — Direktlink
23.11.2010, 19:29 Uhr
Gast:LTM1040
Gäste

Hallo eine Frage, kann an der LR 1280 von Conrad an der Wippspitze die Speichenräder abgenommen werden?

Gruß Danny

(Gast) Zitatantwort || Editieren || Löschen || IP

018 — Direktlink
23.11.2010, 19:38 Uhr
Stephan
Moderator
Avatar von Stephan

Dir Speichenräder sind zusammen mit einer langen Messinghülse an der Spitze vernietet. Diese Hülse muß man an einem Ende einfach aufbohren, um die Ablaufräder zu demontieren.

Gruß vom Rhein
Stephan
--
Gruß vom Rhein
Stephan

"Hätten Sie aber können!!!"

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

019 — Direktlink
23.11.2010, 19:40 Uhr
Gast:LTM1040
Gäste

sitzen auf der Messinghülse auch die Seilrollen des Hubseils?

Wie viele Rollen sind im Kopfstück des Haupauslegers?

Danke

Gruß Danny

(Gast) Zitatantwort || Editieren || Löschen || IP

020 — Direktlink
23.11.2010, 19:50 Uhr
Stephan
Moderator
Avatar von Stephan

Keine Ahnung, muß ich nachschauen...

Gruß vom Rhein
Stephan
--
Gruß vom Rhein
Stephan

"Hätten Sie aber können!!!"

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP

021 — Direktlink
23.11.2010, 19:51 Uhr
Gast:LTM1040
Gäste

wäre super danke

(Gast) Zitatantwort || Editieren || Löschen || IP

022 — Direktlink
23.11.2010, 21:36 Uhr
Hans Dampf

Grüzi.

5 Rollen am Hauptausleger.
Und ja, die Rollen an der Wippe sitzen auf dieser Messinghülse.

Grüße aus der Schweiz.
Chriese.

Profil || Private Message || Suche Zitatantwort || Editieren || Löschen || IP
